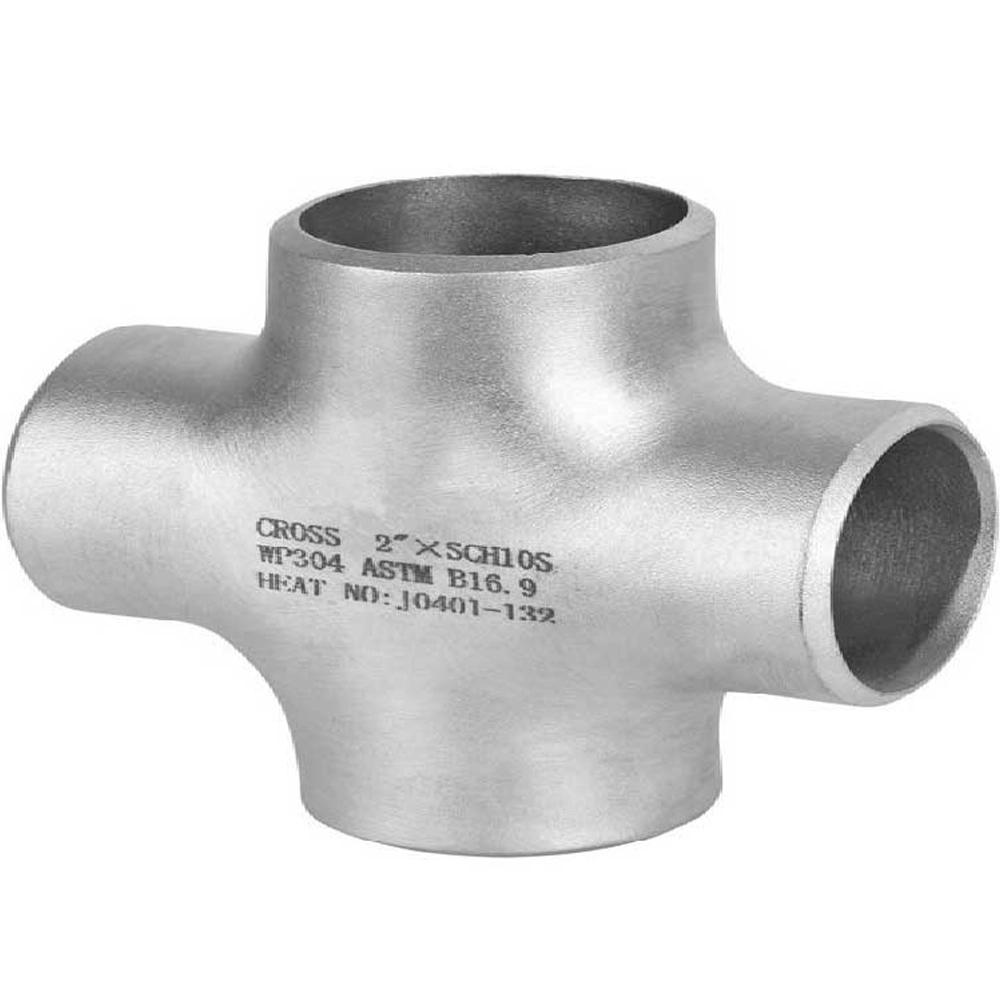

PIPE CROSS – STRAIGHT/EQUAL CROSS, REDUCING CROSS

 CARBON, ALLOY,STAINLESS STEEL PIPE CROSS

Butt Welded Pipe Cross Production Range

Type: Seamless, Welded, Equal Cross,Reducing Cross

Outside Diameter:

 Seamless Cross Fitting ( 1/2″～24″), ERW /

Welded /Fabricated Cross Fitting (1/2″～48″)

Wall Thickness: 3mm – 40mm / SCH5, SCH10,SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Production Grades:

Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel,Cupronickel

Manufacturing Standards

ASME: ANSI B16.9, ANSIB16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2

ASTM A403 – ASMESA403 –Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Fittings Butt-welding

ASME B16.25 – Butt-welding Ends

ASMEB16.28 – Wrought Steel Short Radius Elbows and Butt-welding Returns

MSS SP-43 – Wrought and FabricatedButt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Cross Material Grades

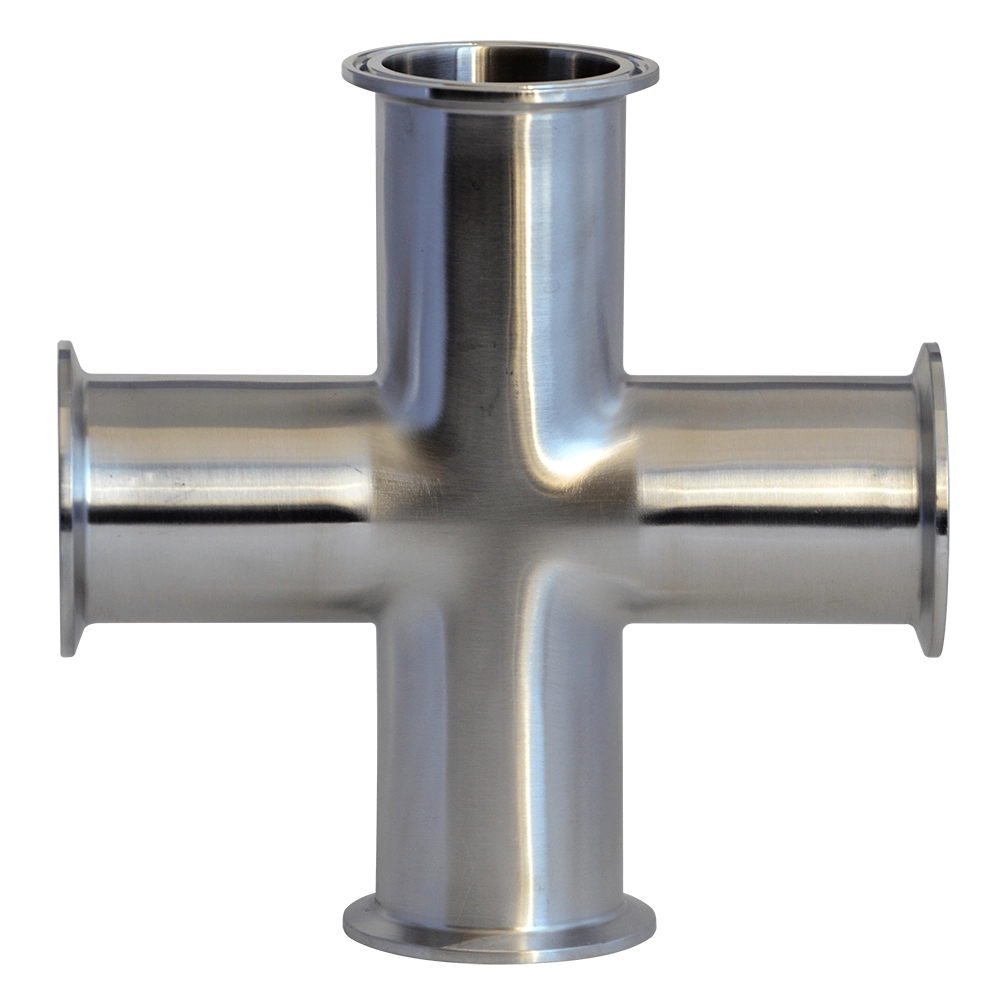

Stainless Steel Pipe Cross;    ASTMA403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Pipe Cross:    ASTMA 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Pipe Cross:    ASTMA420 WPL3, A420 WPL6

Alloy Steel Pipe Cross:   ASTM/ ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Pipe Cross: ASTMA 815, ASME SA 815 UNS NO S31803, S32205.

Nickel Alloy Pipe Cross: ASTM/ ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOYC 276 )
