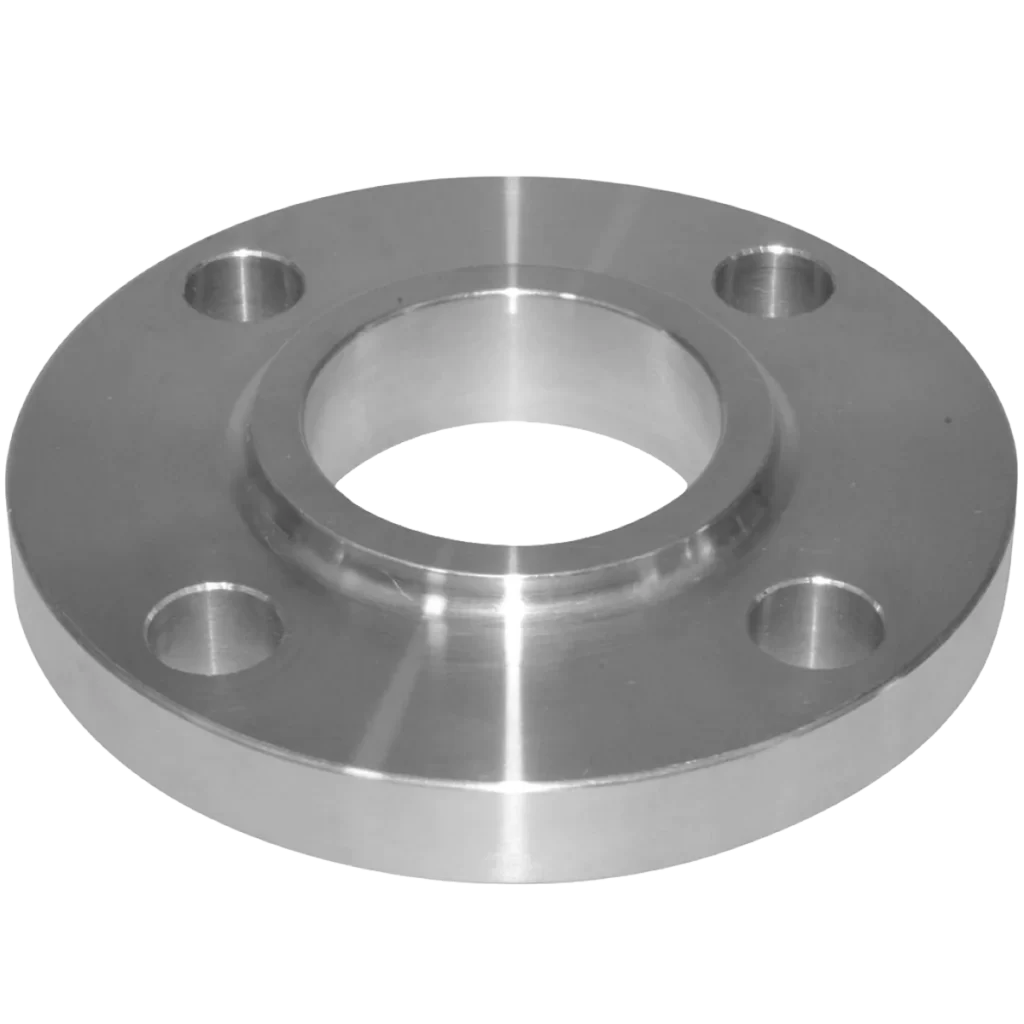

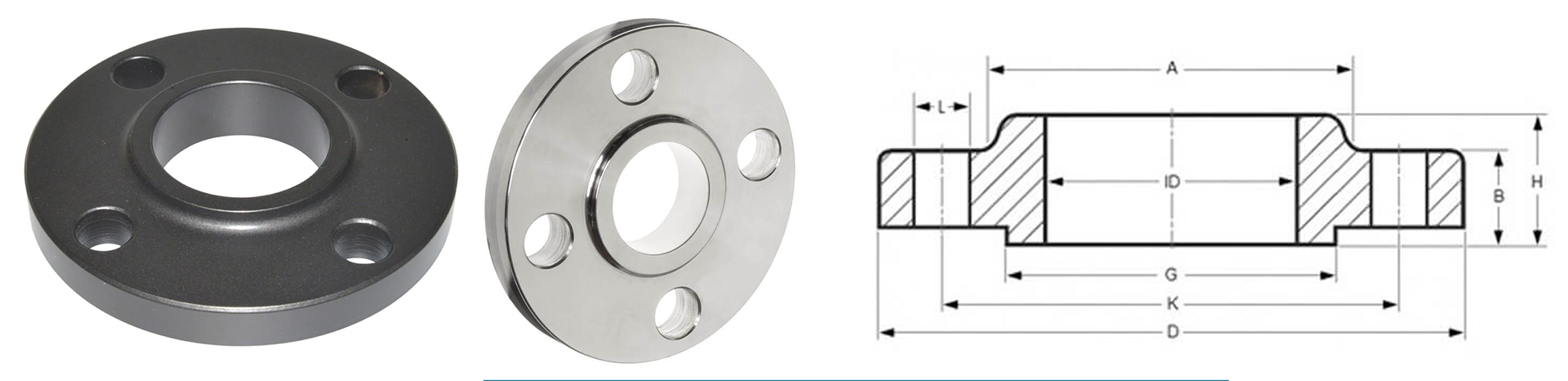

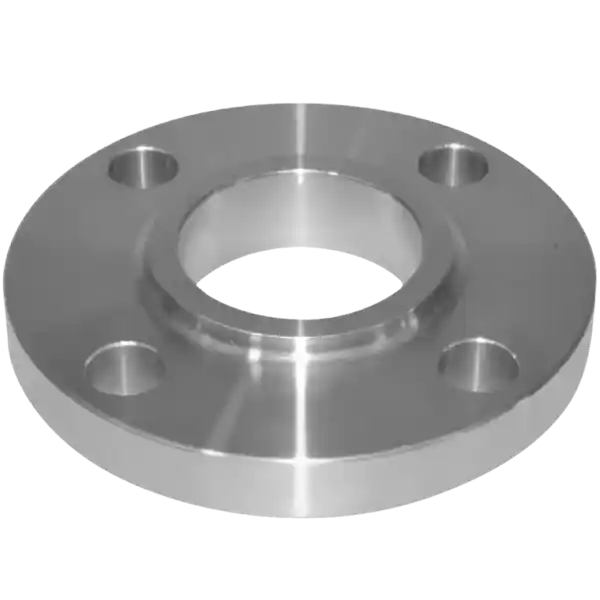

Slip On Flange
- PRODUCT DETAIL
Slip On Flange SO Flange Description
| Standard | Type | Class | Size |
| ASME B16.5 | WN/LWN/SO/Blind/Lap Joint | 150#-2500# | 1/2″-24″(Except Blind Flange 2500lb 1/2″-12″) |
| DIN2543 | SO flange | PN16 | DN10-DN1000 |
| DIN2544 | SO flange | PN25 | DN10-DN1000 |
| DIN2545 | SO flange | PN40 | DN10-DN500 |
| Sealing Surface | RF FF RTJ TF GF LF LM | ||
| Flange Face Finish | Stock Finish/Spiral Serrated/Concentric Serrated/Smooth Finish(Ra 3.2 and 6.3 micrometers) | ||
| 125-250 AARH(it is called smooth finish) | |||
| 250-500 AARH(it is called stock finish) | |||
| Coating | Vanish, yellow paint, anti-rust oil, galvanizing etc | ||
Slip On SO Flange Material Grades:Slip on flanges, like plate flat welding flanges, are flanges that extend steel pipes, pipe fittings, etc. into the flange and are connected to equipment or pipelines through fillet welds. They are also flat welding flanges because they have a short neck. Thereby increasing the strength of the flange and improving the bearing strength of the flange. So it can be used in higher pressure pipelines. Disadvantages: The cost of the SO flange is higher than the plate flat welding flange, and it is easier to bump during transportation due to the characteristics of its shape.
The Slip ON Flanges surface can be Raised Face(RF), Flat Face(FF), Ring Joint Face(RTJ), and some other faces.
We HT PIPE is the manufacturer that provide all kinds of steel flanges like Slip on Flanges, Plate flat Flanges, Weld Neck Flanges, Blind Flanges, Socket Weld Flanges, and so on, and also other special flanges according to the client’s requirement.
Slip On SO Flange Specification:
| Carbon Steel | ASTM /ASME A/SA105(N), A350 LF2/LF3, A694 F52, F56, F60, F65, F70 | ||
| Alloy Steel | ASTM/ASME A/SA 182 F5, F9, F11, F22, F91 | ||
| Stainless Steel | ASTM/ASME A/SA 182 F304, 304L, 304H, 310H, 316, 316H, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L | ||
| Duplex and Super Duplex | ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950 | ||
| Nickel Alloy Steel | ASTM/ASME B/SB 564 UNS N02200(NICKEL 200), UNS N04400, (MONEL 400), UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600), UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276) | ||
| ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20) | |||
| Copper Alloy | ASTM/ASME B/SB151 UNS N07060, 71500, C70600(CuNi 90/10), C71500(CuNi 70/30) | ||
| Titanium | ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7 |
